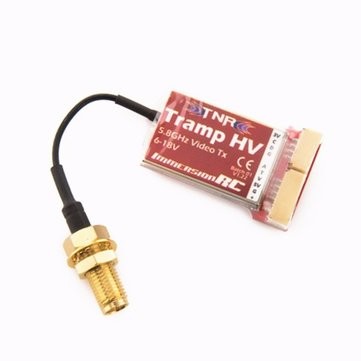

ImmersionRC Tramp HV 6-18V 5.8GHz Video Transmitter

Description Specification: Dimensions: L=32mm x W=14mm x H=5mm Weight: 4g (Tx only, without SMA cable) Power Output: Programmable, 1mW to > 600mW Channels: 48 standard, arbitrary using race wand RF Impedance: 50 ohms RF Connector: U.FL AV Connector: JST-GH, 6 pin, locking TNR Connector: JST-GH, 4 pin, locking Audio: Mono, Subcarriers on 6.0 and 6.5MHz (cloned) Modulation: FM, Audio and Video Pit Frequency: User/Race Organizer Definable Video Impedance: 75 ohms Power Requirements: 2s-4s HV Lipo Power Consumption:  ~4W max. @ 600mW, ~1.9W @ 200mW Features: – Smallest direct LiPo powered VTx in the business. – TNR Touch-free wand control – Traditional button LED control of frequency and power – 1mW -> 600mW linear power control – All 40 standard channels – Built-in thermal protection – Factory power normalization – Glitch-Free frequency changes – Micro-power pit mode – Additional channels for race events (Race Wand only) – Retail regional locking without opening package Package includes: 1 x ImmersionRC Tramp HV  Video Transmitter
