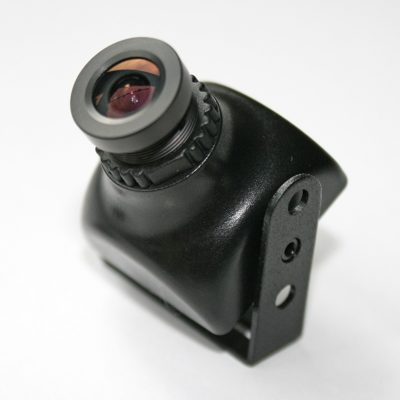

HS1177 Sony Super HAD II CCD FPV Camera (2.8mm lens)

Note: These include a 2.6mm lens as standard, hence they are cheaper! Specifications: Model HS1177 CCD 1/3” Sony SUPER HAD II CCD Pixel PAL: 976(H) x 494(V);NTSC: 768(H)×494(V) TV System PAL (according to country) Resolution 650TVL(b/w), 600tvl(color) Synchronization internal synchronize Shutter Speed (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec Noise > 60 (AGC OFF) Video Out 75ohm, synchronize Min. Illumination 0.01Lux Auto Gain Off/Low/Mid/High Back Light Compensation (BLC) Off /Back light compensation/ Strong light suppression Private shading (PRIVACY) 1~8 private shading area Motion Detection (MD) On/ Off (Multi level sensitivity settable) Auto White Balance Manual / Auto / Auto track Mirror Horizontal Mirror optional Negative Positive / Negative optional Color to B&W Auto DNR 2DNR WDR D-WDR Day / Night Shift Auto/ Color/ B&W Menu (OSD) English menu White Dot Repair Support Image Adjustment Support Camera Title Support Power Requirement DC5V~22V Working Temperature -10 C ~ 50 C Working Humidity 20~80% Storage Temperature -40 C ~ 60 C Storage Humidity 20~95% Dimensions(mm) 25X25(W*L) Power Consumption 70mA
