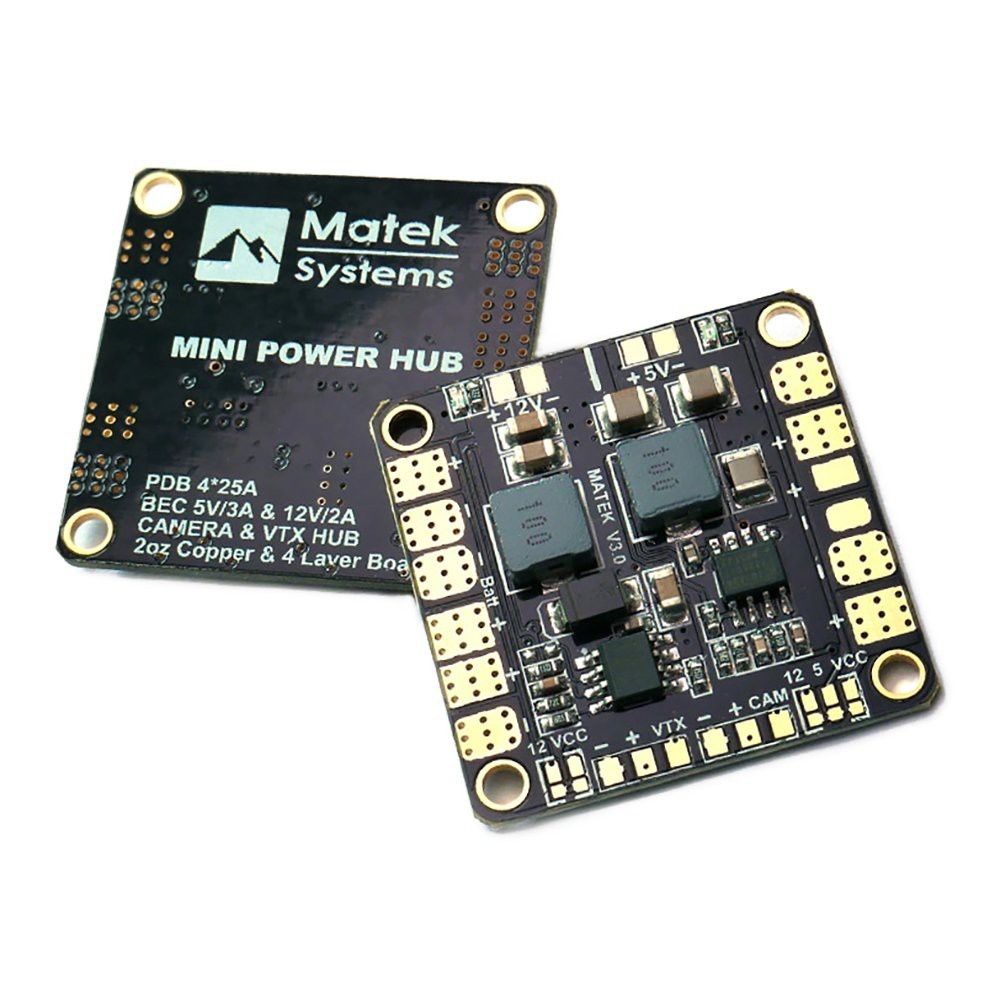

Maytek Mini Power Hub

General: Input voltage range (3S-6S operation): 9 – 26VDC Regulated 5V and 12V outputs LED power indicators ( 5V & 12V outputs ) 4 ESC outputs ESC outputs: Continuous current: 20A per output Peak current (10 seconds/minute): 25A per output BEC 5V output:  Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator, Efficiency is up to 95%. Voltage: 5.0 /- 0.1VDC Continuous current: 3 Amps Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation) BEC 12V output: The battery should be 4S~6S LiPo Standard output designed to power cameras and video transmitters,etc. Voltage: 12.0 /- 0.2VDC Continuous current: 2 Amps (Max.3A 10s/minute) Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation) CAM & VTX voltage bridge 3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage. 4~6S operation, choose “12” for 12V camera & 12V VTX 3~6S operation, choose “5” for 5V camera Video pass through from the “CAM” pad to the “VTX” pad Physical: Dimensions: 36 x 36mm Weight: 6g Mounting holes 30.5mm square spacing
