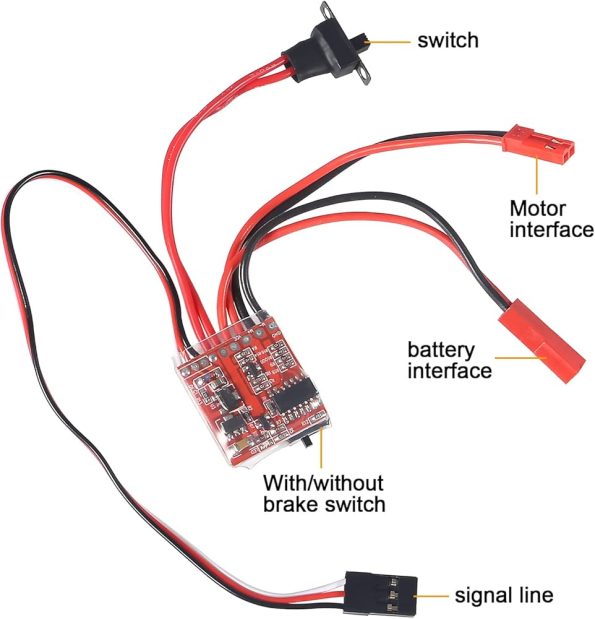

20A Mini Bidirectional Brushed ESC

Smart Braking & Control Unlike basic controllers, this bidirectional ESC features a dedicated braking state. Moving the throttle to the reverse position while moving forward immediately activates the brake to stop your model. To reverse, simply return the stick to neutral and move it back again. This “double-click” logic prevents accidental gear damage and provides a realistic driving experience for cars, boats, and tanks. Precision Engineering for Mini Models The ESC operates at a 2KHz driver frequency, ensuring a smooth and linear throttle curve without the “stuttering” often found in cheaper modules. It comes pre-soldered with high-quality silicone wires that remain flexible in tight spaces. With built-in support for a wide range of small brushed motors (up to 380 size), it’s a versatile upgrade for almost any sub-1/16 scale RC project. Key Features Three-Way Functionality: Smooth control over Forward, Reverse, and Braking modes. Miniature Footprint: Ultra-small 20x20mm PCB size—perfect for weight-sensitive builds. Wide Motor Compatibility: Optimized for 130, 180, 260, 280, and 380 brushed motors. Safety First: Features center-point calibration with audible “DO-BE-MI” tones for easy setup. Plug-and-Play: Standard Category: Drivers & Shields Tags: 130 Motor ESC., 20A Mini Brushed ESC, 2S LiPo ESC Bangladesh, Bidirectional Brushed ESC, Mini-Z ESC, RC ESC with Brake BD, Small Robot Speed Controller
